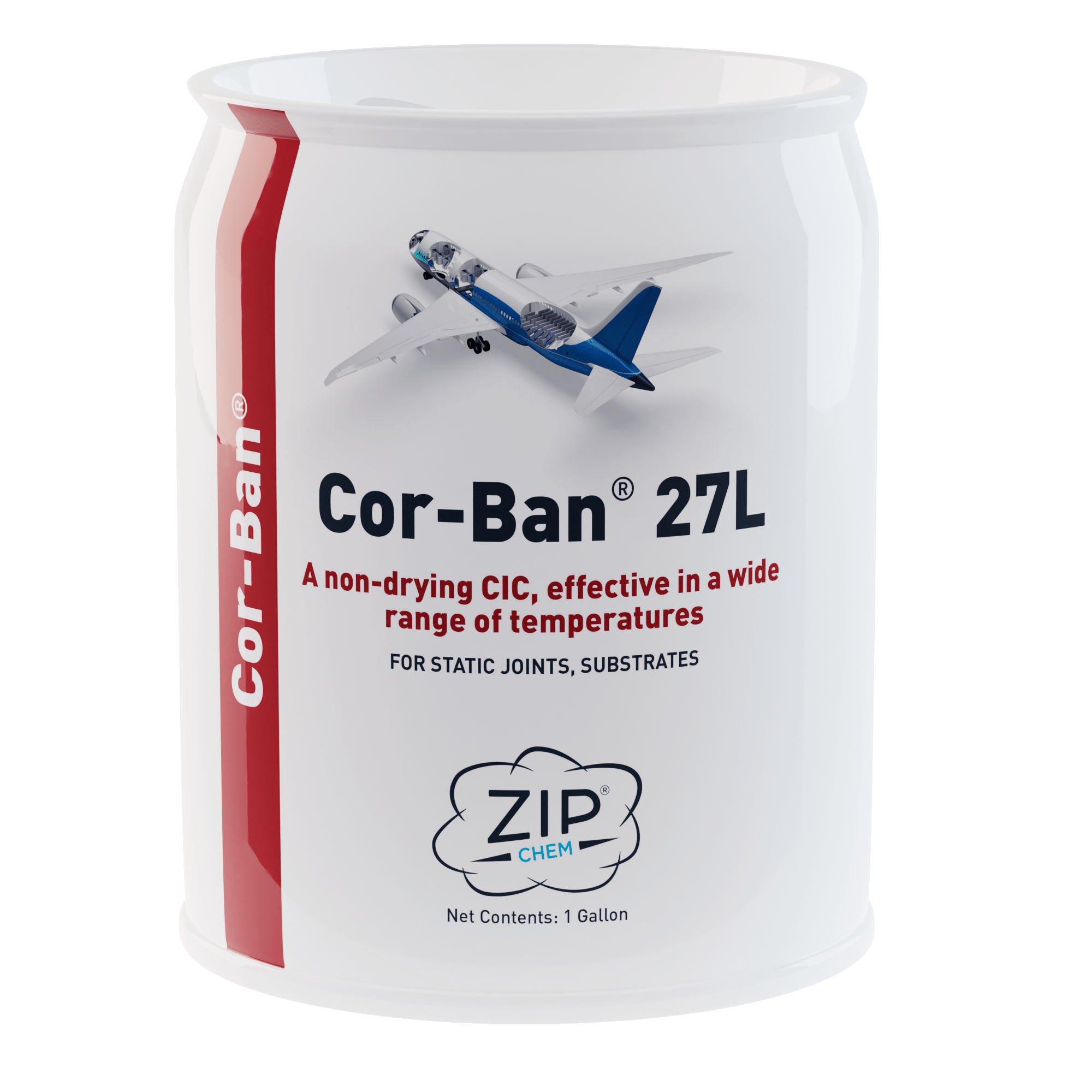

Cor-Ban® 27L
A non-drying CIC, effective in a wide range of temperatures for static joints, substrates
Features
-
- A non-drying, wide temperature range, corrosion inhibiting compound
- Used in the formulation of Cor-Ban® 22
- Contains a thixotropic, buff colored film
- Exhibits an extremely smooth and uniform paste like consistency without any lumps or grit
- Yields a smooth, non-drying, and even film that generates excellent corrosion resistance
- Low odor, non drying, non-toxic, and safe for users
- Typical working temperature range for Cor-Ban® 27L is -65°F to 180°F (-54 to 82°C)
- Wide temperature applications up to 280°F (138°C) (Gearbox applications)
- Withstands high ultra violet exposure in highly corrosive environments
- Withstands brief exposure to temperatures up to 500°F (260°C) with little impact on its corrosion protective properties
- Free of chromates, asbestos, MoS2, graphite, or heavy metals
- Works on any metal surface
- Approved as a replacement for chromate containing non-curing pastes
- Cor-Ban® 27L passes the lightning strike test
- Yields a smooth, non-drying, even film that yields excellent corrosion resistance
- Coats intricate parts
- Available in a Semco® cartridge that fits into a standard pneumatic or ratchet sealant gun that is common in the industry as well as a collapsible tube for manual application and grease cartridges for use with a grease gun
Note: The Semco® Cartridge is a registered trademark of PPG Aerospace.
- Use on static joint applications on a multitude of substrates including any metal surface.
- Apply Cor-Ban® 27L with a spatula or brush at reasonable ambient temperatures.
- Cor-Ban® 27L can be applied at room temperature or at elevated temperature depending on the desired type of coverage.
- Speed application of Cor-Ban® 27Lto parts by preheating Cor-Ban® 27 to 100 – 120°F (38-49°C)
- UseUse on static joint applications on a multitude of substrates including any metal surface.Apply Cor-Ban® 27L with a spatula or brush at reasonable ambient temperatures. Cor-Ban® 27L can be applied at room temperature or at elevated temperature depending on the desired type of coverage. Speed application of Cor-Ban® 27L to parts by preheating Cor-Ban® 27 to 100 – 120°F (38-49°C) Use Cor-Ban® 27 on all access panel fasteners, external antenna mounts, and additional applications For in-service applications, please contact the appropriate manufacturer’s service engineering for details Remove coating by wiping off all excess material and flushing part or wiping part with a rag soaked with Zip-Chem® Sur-Prep® 3160, the D-5640NS Degreaser, Sur-Prep® 3167, or mineral spirits. Note: MEK and other ketones will not remove Cor-Ban® 27L. Liquid application of Cor-Ban® 27L is available as Cor-Ban® 22 on all access panel fasteners, external antenna mounts, and additional applications
- For in-service applications, please contact the appropriate manufacturer’s service engineering for details
- Remove coating by wiping off all excess material and flushing part or wiping part with a rag soaked with Zip-Chem® Sur-Prep® 3160, the D-5640NS Degreaser, Sur-Prep® 3167, or mineral spirits.
- Note: MEK and other ketones will not remove Cor-Ban® 27L.
- Liquid application of Cor-Ban® 27L is available as Cor-Ban® 22
- Airbus: CML 06LGG5
- Boeing BMS 3-38B
- Boeing DPM 6498
- Boeing HMS 20-1267/2372
- Cessna CSNP038 Type X
- Embraer: E9447580
- Embraer MEP-QPL-09-075
- Goodrich LGQP 5010E Type V
- Gulfstream GMS 4109 Rev C
- Lilium LD0004650
- Sikorsky SS 8689 REV 6 (-002)
- NSN: 6850-01-469-7645 (Quart (946 ml))
- NSN: 8030-01-531-7357 (5 fl oz. (148 ml) Tube)
- NSN: 8030-01-531-7355 (6 fl oz. (177 ml) Semco® Cartridge)
- T.O. 4S1-108-1
- T.O. 4S1-182
- T.O. 4W-1-61 (Gen Aircraft WheelMx)
- T.O. 1C-130JA23
- Color: Amber/Tan
- Corrosion Resistance (ASTM B-117 Steel): >4000 hrs
- Drying Resistance: 7 days @ 160°F (71°C): pass
- Flow Point: No flow @ 160°F (71°C): pass
- Fungal Growth per Fed-STD-810 Method 508.7: 0 (No Microbial Growth)
- Low Temp Adhesion: <1/32″ @ -65°F (-54): pass
- Film Thickness Test Results: 2 mils (51 microns)
- Case of 12 of 5 fl oz (148 ml) Tubes (009402)
- Case of 12 of 6 fl oz (177 ml) Semco® Cartridges (009403)
- Case of 12 of 14 fl oz (414 ml) Grease Cartridges (009873)
- Case of 12 each Quart (946 ml) (009405)
- Case of 12 each Pint (473 ml) Cans (009404)
- Case of 4 each Gallon (4 each of 3.8 L) Cans (009406)
- 5 Gallon (18.9 L) Pail (002099)
- 55 Galllon Each (002100)
